Seam Lock Roofing
Standing Seam Roofing System
Indoframe Standing Seam Roofing System is an advanced roofing solution that combines architectural aesthetics with high structural performance. Designed for modern PEB structures, this system offers superior weather protection, durability, and long-span capability.
Standing Seam panels are engineered to provide excellent uplift resistance, making them highly reliable even under extreme wind conditions. The system is suitable for low roof slopes (up to 1:50), offering greater design flexibility for architects and engineers.

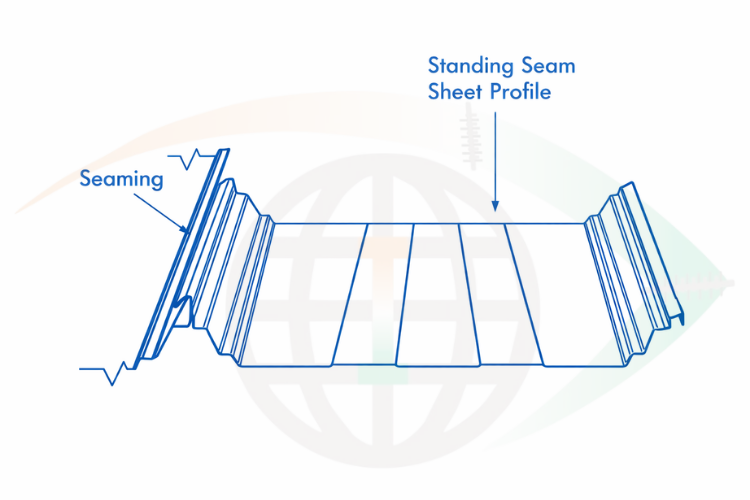

This is a concealed fastening system, where panels are joined using a mechanical seaming process, eliminating exposed screws and ensuring a completely leak-proof roofing solution. Panels are roll-formed at site to achieve single-length sheets, reducing joints and enhancing performance.
Manufactured using high-quality Galvalume steel (0.55 mm / 0.60 mm TCT), the system provides excellent corrosion resistance and long service life.
Key Features:
- Concealed fastening (no visible screws)
- High wind uplift resistance
- Suitable for low slope roofs
- On-site roll forming for joint-less panels
- Allows thermal expansion & contraction
- Superior weather-tight and leak-proof system
